Interrupts

• Instead of having to constantly poll to see if a flag is set, interrupt the processor when a flag is set
• When a peripheral needs an action, it can generate an interrupt

Handling

• Masks and priority are to determine which interrupts should interrupt other interrupts

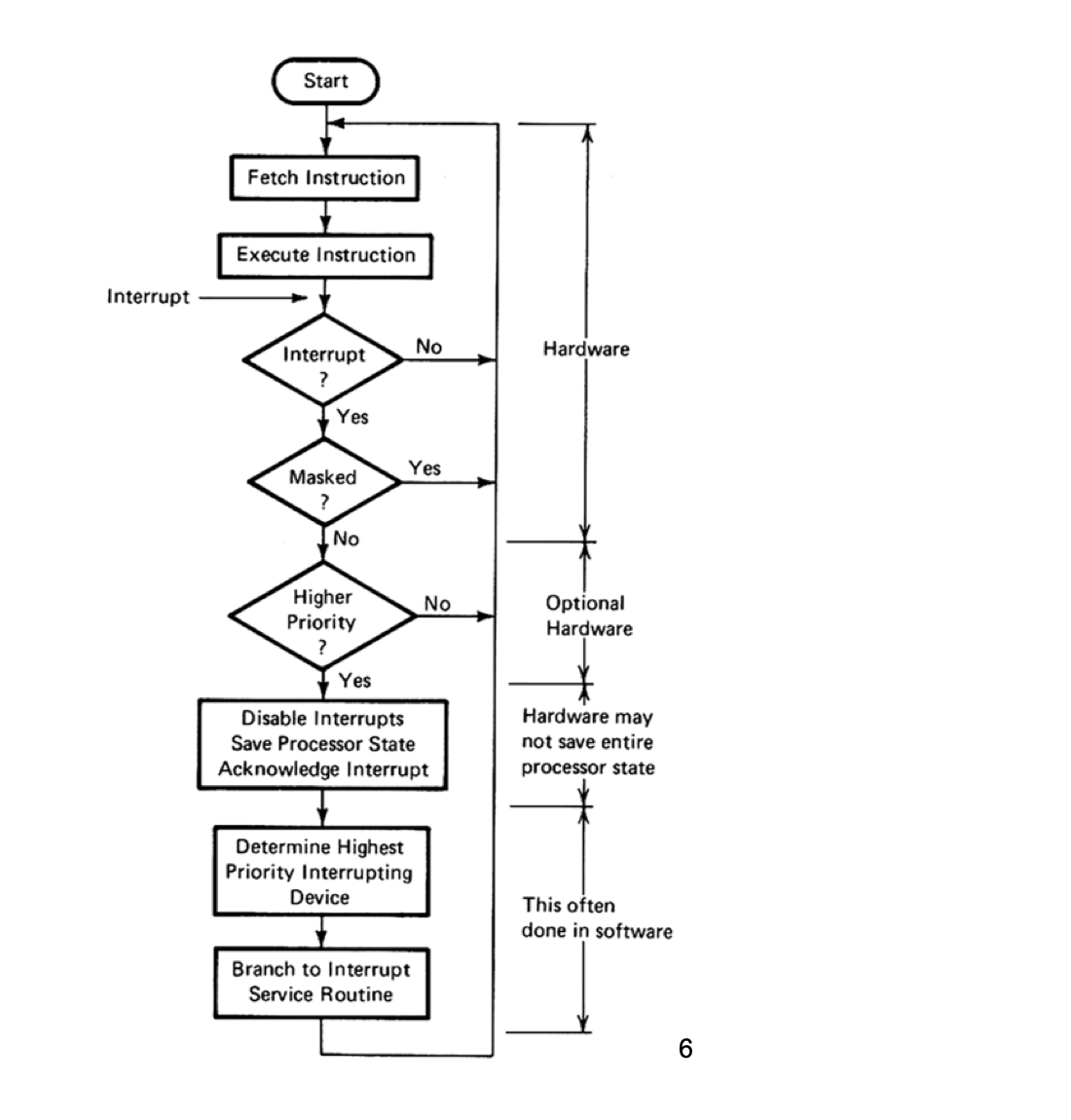

• On Interrupt
  1. Check if it should interrupt
  2. The uP will complete execution of the current instruction
  3. Save the processor status (the CPU registers, except the stack pointer) on the stack
  4. Branch to a special location (interrupt vector address) to execute a interrupt service routine (ISR) that will service the interrupting

Implementation

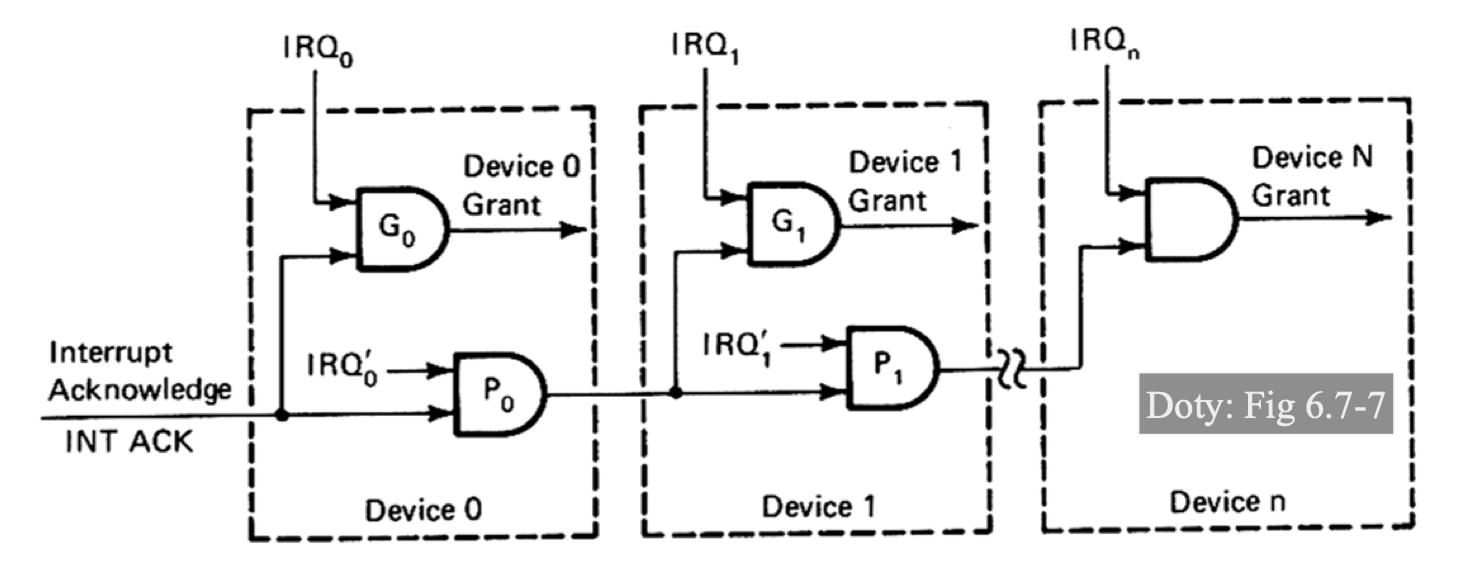

• Polling: Daisy-Chain
  •
• Finding ISR Address
  •

In XMEGA

• Has a programmable multilevel interrupt control (PMIC)
  • Has 3 interrupt levels (low, medium, high)
  • Within each level, the interrupt priority is based on the interrupt vector address (lower the address, higher the priority)
• Interrupts have a global enable (bit I in status register)
  • Set and cleared by SEI and CLI
• RETI (interrupt return) must exist at the end of each interrupt service routine
• All interrupts have an interrupt associated flag
  • When the interrupt condition is set, the interrupt flag will be set even if the corresponding interrupt is not enabled
• For some interrupts, the interrupt flag is automatically cleared when handled
  • Should just always clear just in case
  • Clear by running a 1 to it
• Does not support interrupting interrupts
  • A higher priority interrupt will just run right after the current interrupt finishes
• NOTE: XMEGA does not store the status register (SREG) for some reason so it almost always has to be manually pushed and popped
