Arithmetic Logic Unit (ALU)

• Perform both arithmetic and logic operations

1-Bit ALU

• Logic

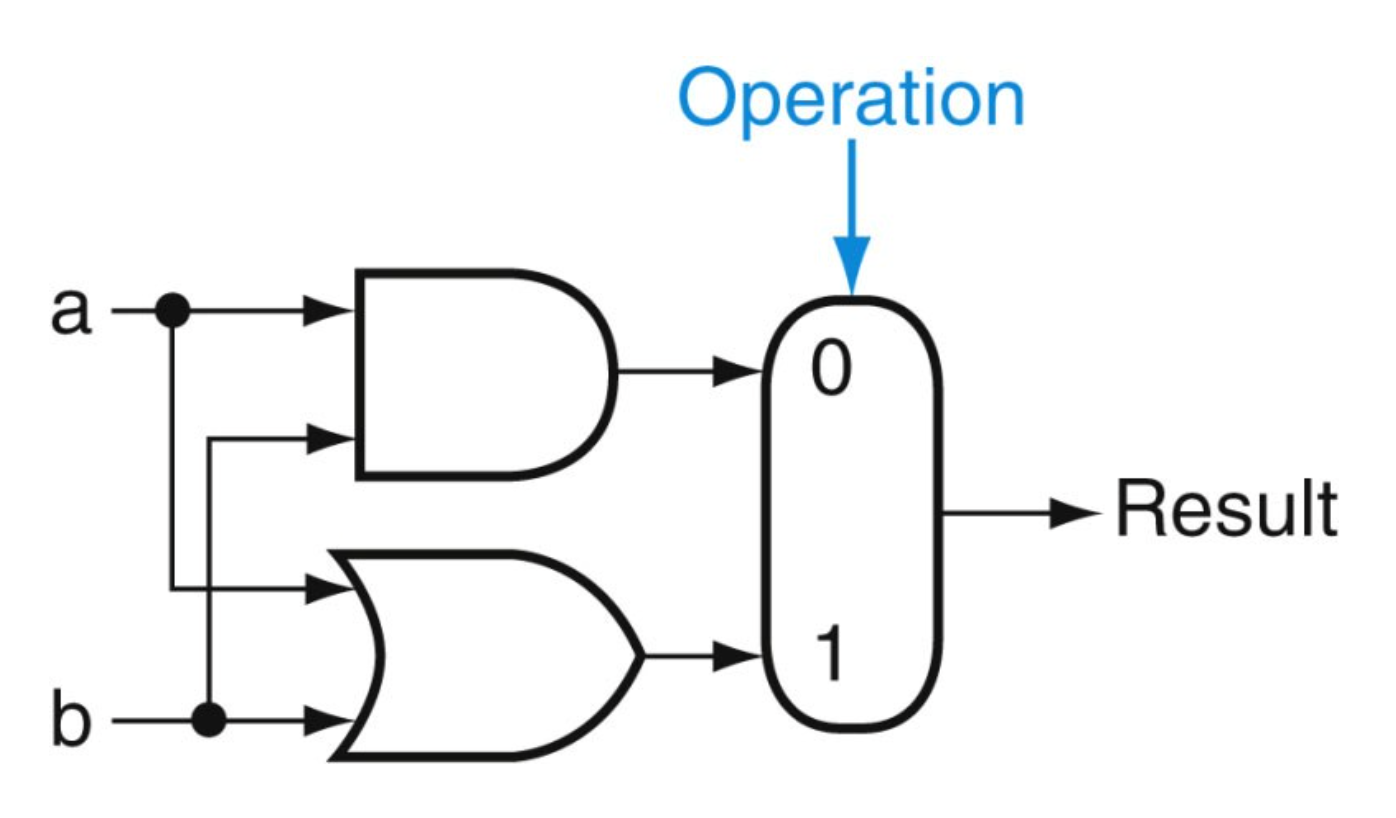

  • Selects AND or OR depending on then control
  • NAND and NOR are from A-Invert and B-Invert
    • Because of reverse DeMorgan’s laws
  • Basic Implementation:
    •

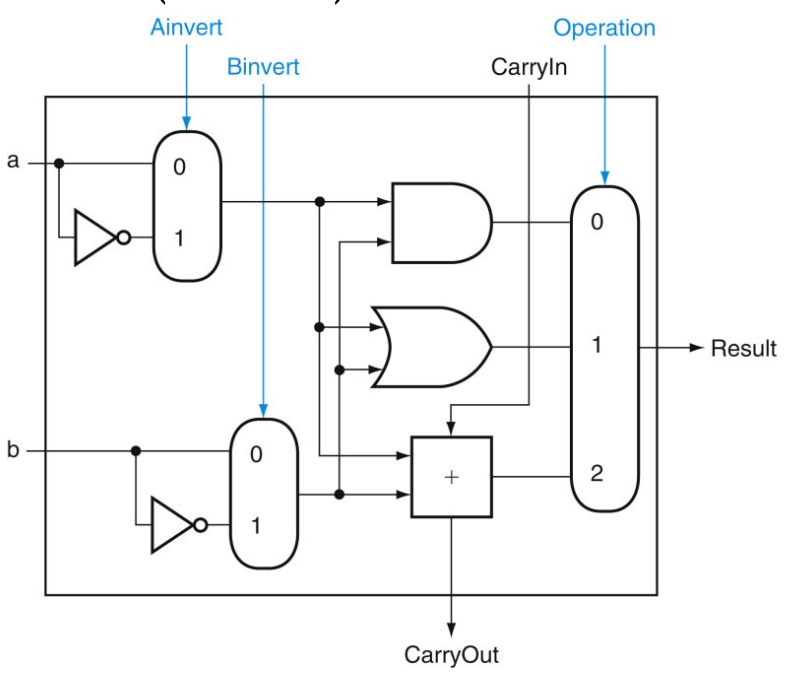

• Add Adders, Multipliers, and Divider (with a mux to select between them)
• Final Result
  •

32-Bit ALU

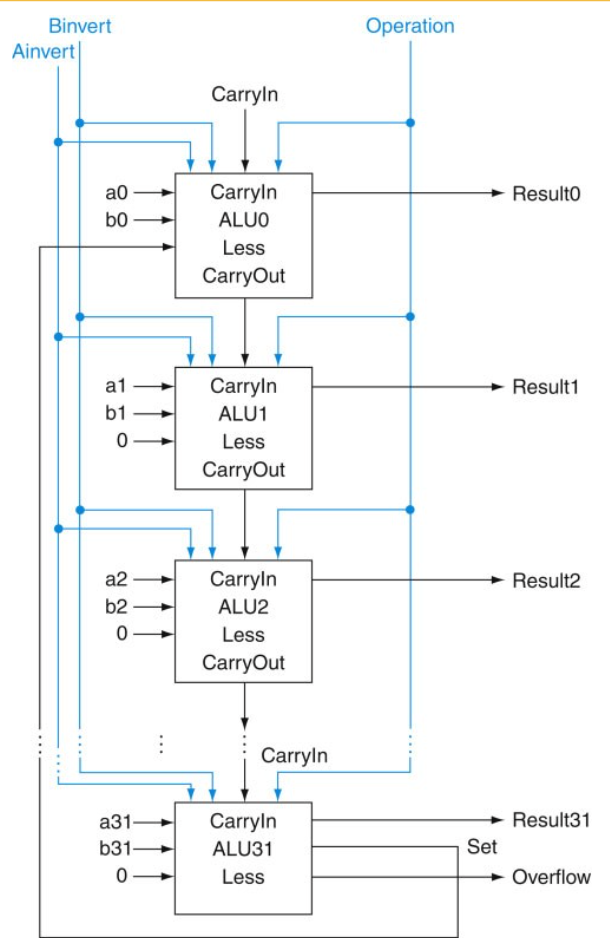

• Made by chaining many 1-bit ALUs
  •

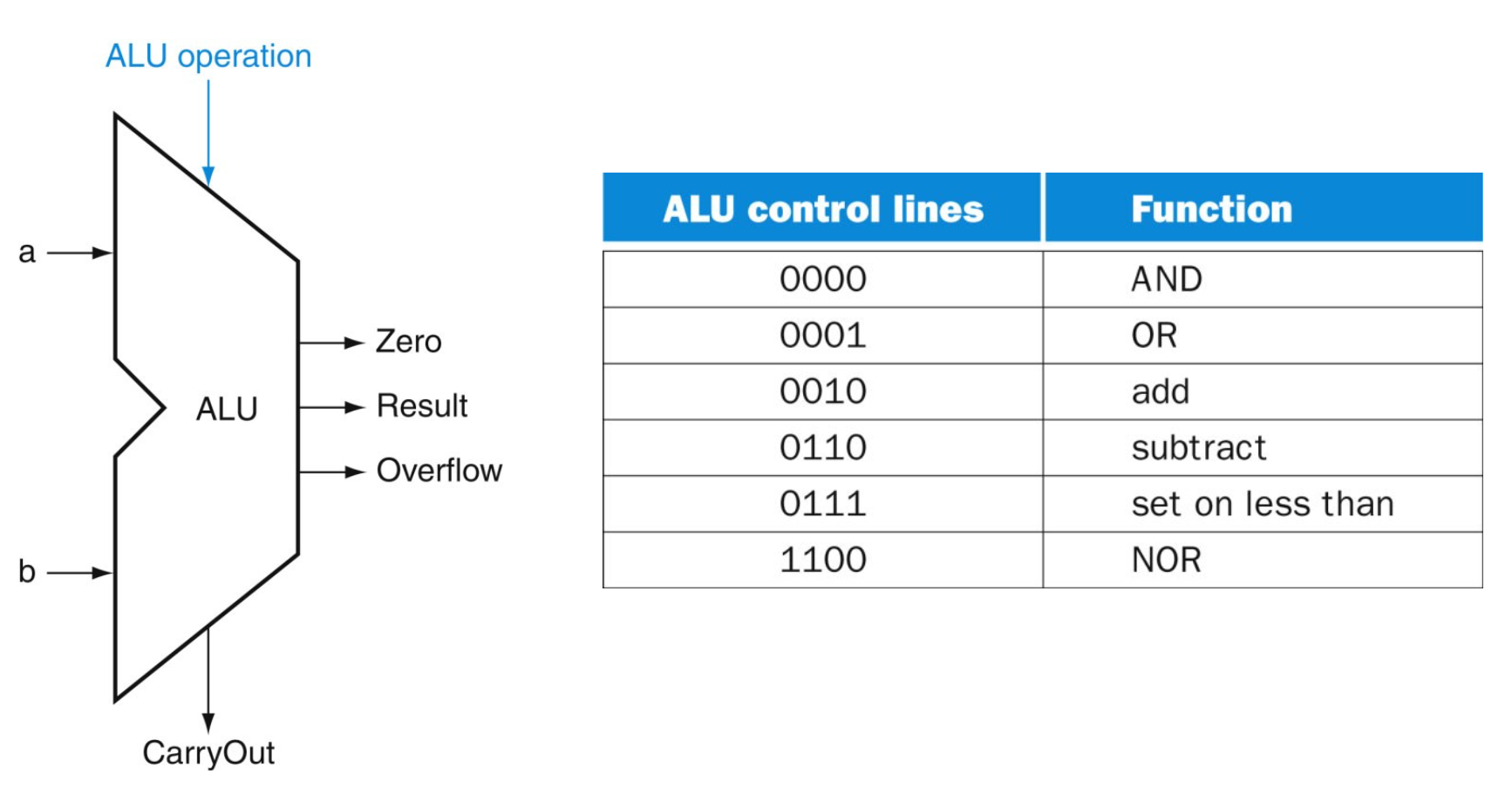

• Final interface
  •
