LEGv8 Machine Code

• Encoded as 32-bit instruction words

R-Format

• All operands are registers
• Format
  • Opcode: 11 bits
  • Second Register (Rm): 5 bits
  • Shift amount (shamt): 6 bits
  • First register (Rn): 5 bits
  • Destination (Rd): 5 bits
• Rd = Rn OP (Rm << shamt)

I-Format

• One operand is an immediate value
• Format
  • Opcode: 10 bits
  • Immediate: 12 bits (zero extended)
  • Input Register (Rn): 5 bits
  • Destination Register (Rd): 5 bits

D-Format

• Load/Store
• Format
  • Opcode: 11 bits
  • Address (constant offset): 9 bits
  • Op2: 2 bits
  • Base Register (Rn): 5bits
  • Destination or source register (Rt): 5 bits

CB-Format

• Conditional branch
• Format
  • Opcode: 8 bits
  • Location: 19 bits (PC-relative)
    • Stores the number of words to the next instruction (instead of bytes) since all instructions are that long
    • In two’s complement form to allow for going backwards (#question confirm this)
  • Condition Register: 5 bits

UB-Format

• Unconditional branch (jump)
• Format
  • Opcode: 6 bits
  • Location: 26 bits (PC-relative)

IW-Format

• For MOV

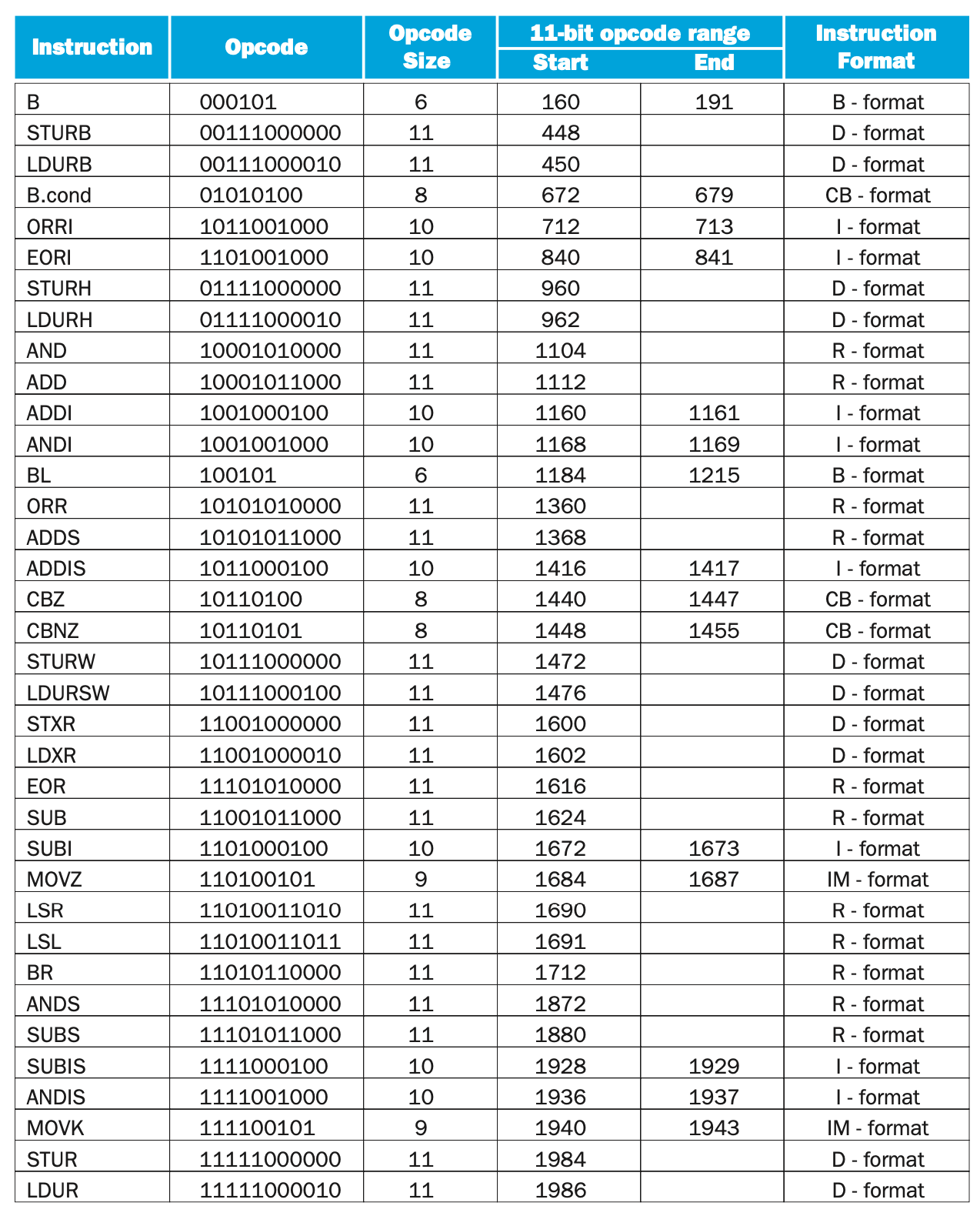

Opcodes
